The Common Issues with Bellow Covers and How to Prevent Them

May. 22, 2025

Bellow covers are essential components in CNC machinery, laser cutting equipment, automation systems, and various industrial machines. Their primary function is to protect moving parts—such as guideways, ball screws, and hydraulic rods—from dust, coolant, metal chips, and accidental damage. While bellows are designed to withstand harsh environments, they can still experience performance issues over time if not properly selected, installed, or maintained.


At LIONSHELL, we’ve supported hundreds of machine builders and OEMs with precision-engineered bellow covers. In this article, we explore some of the most common issues users face with bellow covers—and how to prevent them effectively.


1. Premature Wear or Tearing


Problem:
One of the most frequent issues is fabric or material tearing along folds or edges. This usually occurs due to constant mechanical stress, poor alignment, or the use of incompatible materials for the working environment (e.g., high heat, oil exposure, metal chips).


Prevention Tips:

Choose high-quality materials such as PU-coated fabric, Kevlar, aluminized fiberglass, or PVC based on operating conditions.

Ensure the bellow is not overstretched and matches the machine’s stroke and cycle speed.

Install support frames or metal stays to reduce fold collapse and fatigue in large bellows.


2. Contaminant Infiltration


Problem:
Bellows are meant to keep out debris and coolant, but gaps or broken seams can let particles enter and damage internal components like guide rails or ball screws.


Prevention Tips:

Use fully sealed or welded bellows in environments with liquid coolant or fine dust.

Apply end flanges or frame mounts to tightly secure the bellows in position.

Perform regular inspections to detect and replace worn or cracked sections before failure.


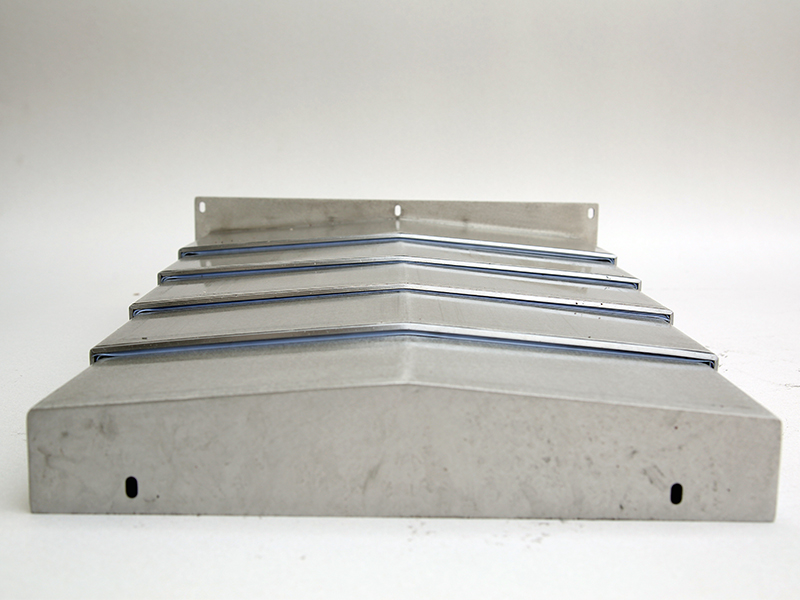

The Common Issues with Bellow Covers and How to Prevent Them


3. Jamming or Improper Folding


Problem:
Improperly designed or installed bellows may jam or fold unevenly during motion. This can lead to performance drag, misalignment, and eventually tearing.


Prevention Tips:

Design bellows with balanced fold geometry and accurate stroke range.

Use telescopic slides, gliders, or frame guides to ensure smooth folding motion.

Ensure the installation provides enough clearance for full retraction and extension.


4. Heat and Chemical Degradation


Problem:
Exposure to high temperatures, oils, acids, or welding sparks can cause bellows to crack, shrink, or degrade.


Prevention Tips:

Select heat- and chemical-resistant materials such as silicone-coated fabric, aluminized aramid fiber, or steel-reinforced options.

Add metallic shielding or layered constructions in applications with welding, grinding, or high UV exposure.

Always match the material specification to the actual work environment.


5. Incorrect Dimensions or Mounting


Problem:
Bellows that are too tight, too loose, or mounted off-center can create excessive stress and uneven load distribution, leading to early failure.


Prevention Tips:

Use custom-fitted bellow covers tailored to your machine’s stroke length, direction, and mounting method.

Work with a manufacturer like LIONSHELL that offers engineering consultation and on-demand customization.

Ensure mounting plates or brackets are secure, aligned, and vibration-resistant.


Prolong Bellow Life with the Right Design and Maintenance


Bellow covers might seem like small accessories, but their role in machine protection is critical. Choosing the right type of bellow, made from the correct material and correctly installed, will significantly reduce downtime, lower maintenance costs, and extend the life of key machine components.


At LIONSHELL, we specialize in high-quality, custom-engineered bellow covers for CNC, laser, plasma, automation, and heavy-industry applications. Whether you need a compact solution for fast-moving axes or a high-temperature bellow for demanding environments, we provide durable, precise, and affordable protection systems. Contact our engineering team for a customized solution.
