In today’s automation-driven industries, machines are expected to move faster, last longer, and operate in more demanding environments. Behind this performance is a small but critical component: the cable drag chain. Also known as cable carriers, these protective systems are responsible for safely guiding and supporting moving cables and hoses—whether on CNC machines, robotic arms, gantry systems, or automated warehouse conveyors.
At LIONSHELL, we specialize in the design and manufacturing of customizable, durable cable drag chains that meet the demands of high-performance industrial systems. In this guide, we walk you through everything you need to know about cable drag chains—including their structure, selection tips, and key application areas.

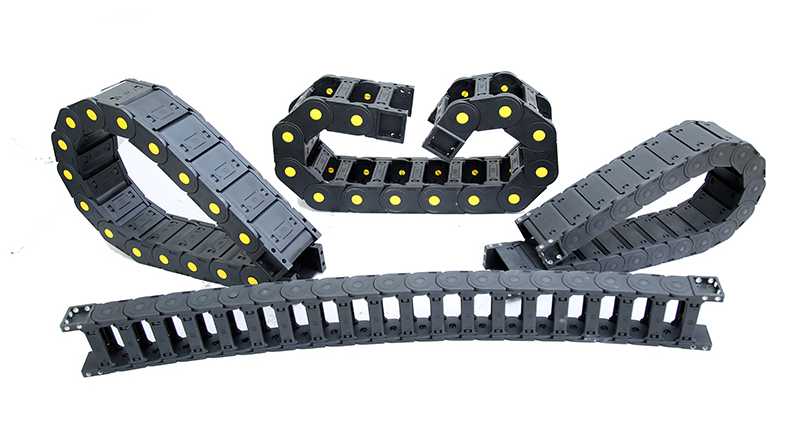

A cable drag chain is a flexible protective system made from interlocking links that create a continuous channel for moving cables and hoses. As the machinery moves along an axis, the chain bends and guides the cables, keeping them organized and free from entanglement, wear, or external damage.
LIONSHELL drag chains are available in both plastic (reinforced nylon) and metal (aluminum or stainless steel) to accommodate a wide range of mechanical and environmental conditions.
Cable drag chains have been an integral part of manufacturing since their introduction in the 1950s. This innovation prevented damage to cables that would otherwise hang loosely from machinery until it sustained severe enough damage to warrant replacement.
Initially, cable carriers were only made from steel. This metal was readily available due to mass production methods used for the past several decades. Plus, without the war efforts needing to use large amounts of steel, manufacturers could take advantage of this versatile material.
Though polypropylene entered the market in the 1950s, cable drag chain producers did not begin to use this flexible plastic until the 1970s. However, since then, both steel and plastic remain popular materials for cable carriers because they offer durability, flexibility and heat resistance.
Over time, cable drag chains have evolved alongside machinery. As automated machines move faster and more efficiently, cable tracks have changed their designs to keep up — and modern designs can cover longer distances than thought possible in previous decades.
Such innovation occurs with the addition of accessories such as wheels to promote smoother movement over prolonged distances. Another advancement has been the development of heavy-duty drag chains for use in tough environments, such as high-wear and high-stress operations of automated equipment.

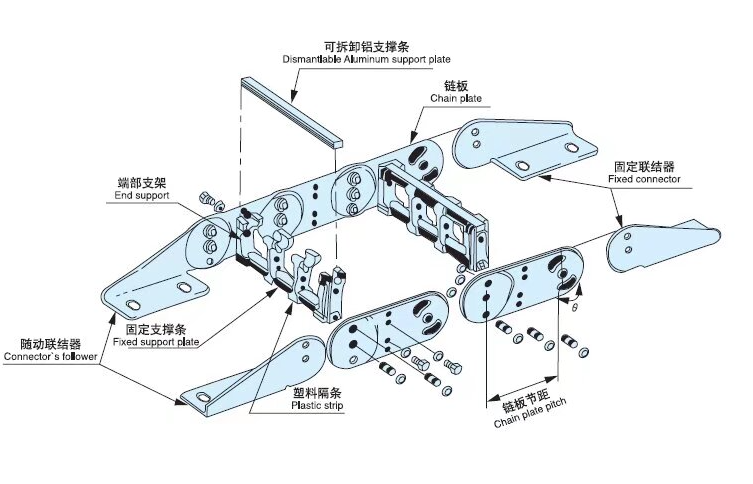

Side Links – Provide structural support and form the skeleton of the chain.
Crossbars – Snap-on or hinged bars that allow easy cable installation and inspection.
Inner Radius and Outer Radius – Designed to maintain cable bend radius and avoid stress points.
Mounting Brackets – Connect the drag chain to fixed and moving machine parts.
Gliding or Rolling Systems – For long-travel applications where friction and wear must be minimized.
At LIONSHELL, we offer modular drag chains that can be easily customized for travel length, bend radius, width, and cable load.
Without drag chains, moving cables would be exposed to constant bending, friction, and external contaminants—leading to insulation cracking, signal loss, and frequent failure. Cable drag chains:
Prevent cable breakage and tangling
Ensure smooth motion with minimal resistance
Improve cable life expectancy
Enhance machine safety and aesthetics
Enable high-speed, repetitive operations with confidence
For industries that rely on 24/7 automation—such as manufacturing, logistics, metalworking, or semiconductor assembly—drag chains are essential for equipment uptime and reliability.
Determine the maximum horizontal or vertical distance your chain must move.
LIONSHELL supports travel lengths up to 100+ meters, with optional glide shoes or guide channels for extended operations.
Use cables with known minimum bend radius and select a drag chain that accommodates or exceeds that radius. Typical bend radii range from 28mm to 150mm.
Calculate the total weight of the cables and hoses. Our drag chains are engineered to handle light signal lines or heavy-duty hydraulic lines alike.
Consider whether the application is exposed to heat, oil, chemicals, or metal chips.
We offer materials with oil resistance, flame retardancy, anti-corrosion coating, and fully enclosed options.
High-speed applications require lightweight, low-friction designs. We provide high-speed drag chains for pick-and-place robots, packaging machines, and laser systems.
Open Drag Chains – Easy to install and maintain; ideal for dry, clean environments.
Enclosed Drag Chains – Protect against dust, oil, and chips; suitable for CNC and metal-cutting machines.
Steel Cable Chains – Designed for heavy loads and outdoor or high-temperature applications.
Multi-Axis Systems – For robotic or rotary platforms needing X/Y/Z directional flexibility.
Rolling or Gliding Systems – For long-distance, high-speed linear motion systems.
Each chain is customizable for inner height, width, pitch, travel distance, and mounting method.
Vehicle movers and car washes are some of the transportation industry applications for cable drag chains. These chains permit flexible or linear movement of the cables, even in applications that require heavy-duty use, such as moving extremely heavy vehicles.
Many robotics rely on power cables or hydraulics to power their components, which need to move smoothly with the machinery. Cable carriers provide this movement without damaging the integrity of the cables or the function of the robotic equipment.
The food and beverage sector frequently uses automated equipment. Protecting the cables with tracks keeps the systems running at their peak while allowing for labor-saving automation. Furthermore, with some options that include magnetically detectable materials for the tracks or cleanroom materials, cable carriers can protect consumers from contamination.
Metal fabrication that uses machine tools requires cable tracks to protect the delicate electrical cables from damage caused by flying metal chips or extreme heat.
One example of marine or offshore operations of cable drag chain use is in port cranes. These machines require heavy-duty components that withstand the corrosion of salt spray and extended use. Additionally, these types of tracks may make the use of cables and hydraulic hoses on offshore oil rigs simpler by protecting these cables as they move with the equipment.
Renewable energy companies may use cable drag chains for the production and transmission of green power. For equipment that requires hydraulic hoses, the use of drag chains prevents the hoses from kinking, ensuring a constant flow of hydraulic liquid to avoid interruption of functioning.
Conveyors that use drag chains may help to transport coal from collection to discharge points. These types of conveyors can solve issues apparent in transporting coal via other methods. These types of conveyors help deliver coal to proper locations throughout coal-fired power plants to assist in energy production.
At LIONSHELL, we work with system integrators, OEMs, and end users across multiple industries to provide cable drag chain solutions that match exact operating requirements.
The failure of cable drag chains can occur in one of three places — the cable, the carrier or a systemic failure of both. Knowing these types of problems and how to prevent them can keep your investment in a cable drag chain protected and your workplace operating efficiently.
First, the cables inside a drag chain can fail. This type of issue may manifest as folded cables, twisted cables, entangled cables, loss of energy supply or cables that don’t remain within the track. Often, these problems stem from improper installation or using a too-small drag chain without enough space for the cables to move.
The carrier itself may fail while the cables inside remain intact, which can lead to stopped work and lost productivity. Cable chain failure can happen from not installing the carrier correctly, using the wrong type of track for the application, misalignment or a lack of regular inspections of the drag chain.
When both the cable tracks and cables fail, the entire system sustains a failure. This type of catastrophic failure most frequently happens from trying to squeeze too many cables into a track. Another cause of system failure is when there is not enough space inside the carrier but someone tries to fit in additional hoses or cables. Generally, all errors that produce this type of problem result from not respecting the need for strain relief inside the cable drag chain.
Ensure drag chains are mounted securely and parallel to the motion axis
Do not overfill the cable channel—leave room for free cable movement
Separate power and signal lines with dividers
Perform routine inspections for wear, debris, and abnormal folding
Replace damaged links or crossbars immediately to avoid total failure
LIONSHELL chains come with modular designs and easy-to-open crossbars, simplifying cable replacement and minimizing downtime.
Cable drag chains may seem like a minor part of a machine system, but their impact on performance, safety, and maintenance costs is major. The right drag chain can significantly extend cable life, enhance machine uptime, and reduce total cost of ownership.
At LIONSHELL, we’re committed to delivering robust, flexible, and fully customized drag chain solutions that keep your machines running—smoothly and safely. Need help selecting the right cable drag chain? Contact us today for a quote on your cable carriers or any other of our cable protection products.
